جزئیات محصول:
|
|
محل منبع: | چین |
---|---|
نام تجاری: | Glawall |
گواهی: | SGS, ISO 9001,UL, CE |
شماره مدل: | دیواره شیشه ای دوتایی کاملاً مدولار |
سند: | 25mm.pdf |
پرداخت:
|
|
مقدار حداقل تعداد سفارش: | 10 متر مربع |
قیمت: | US$80.00 10 - 99 square meters |
جزئیات بسته بندی: | تخته سه لا |
زمان تحویل: | 20-25 روز |
شرایط پرداخت: | L/C ، D/A ، D/P ، T/T ، Western Union |
قابلیت ارائه: | 3000 متر مربع در ماه |
اطلاعات تکمیلی |
|||
مزیت: | قیمت رقابتی، خدمات خوب، حرفه ای بالا، تضمین کیفیت | مکان اصلی: | گوانگدونگ ، چین |
---|---|---|---|
صدور گواهینامه کارخانه: | بله | منطقه کارخانه: | 20000 متر مربع |
مادی: | قاب آلومینیومی، پانل های آکوستیک | عایق صدا: | 38-45db |
ضخامت تابلو: | 60 ، 90.108 میلی متر | نوع شیشه: | شیشه مقاوم |
تهویه: | سیستم جریان هوا | ضمانت: | 2 سال |
برجسته کردن: | 90mm aluminum partition wall,double glass modular partition,aluminum frame partition system,double glass modular partition,aluminum frame partition system |

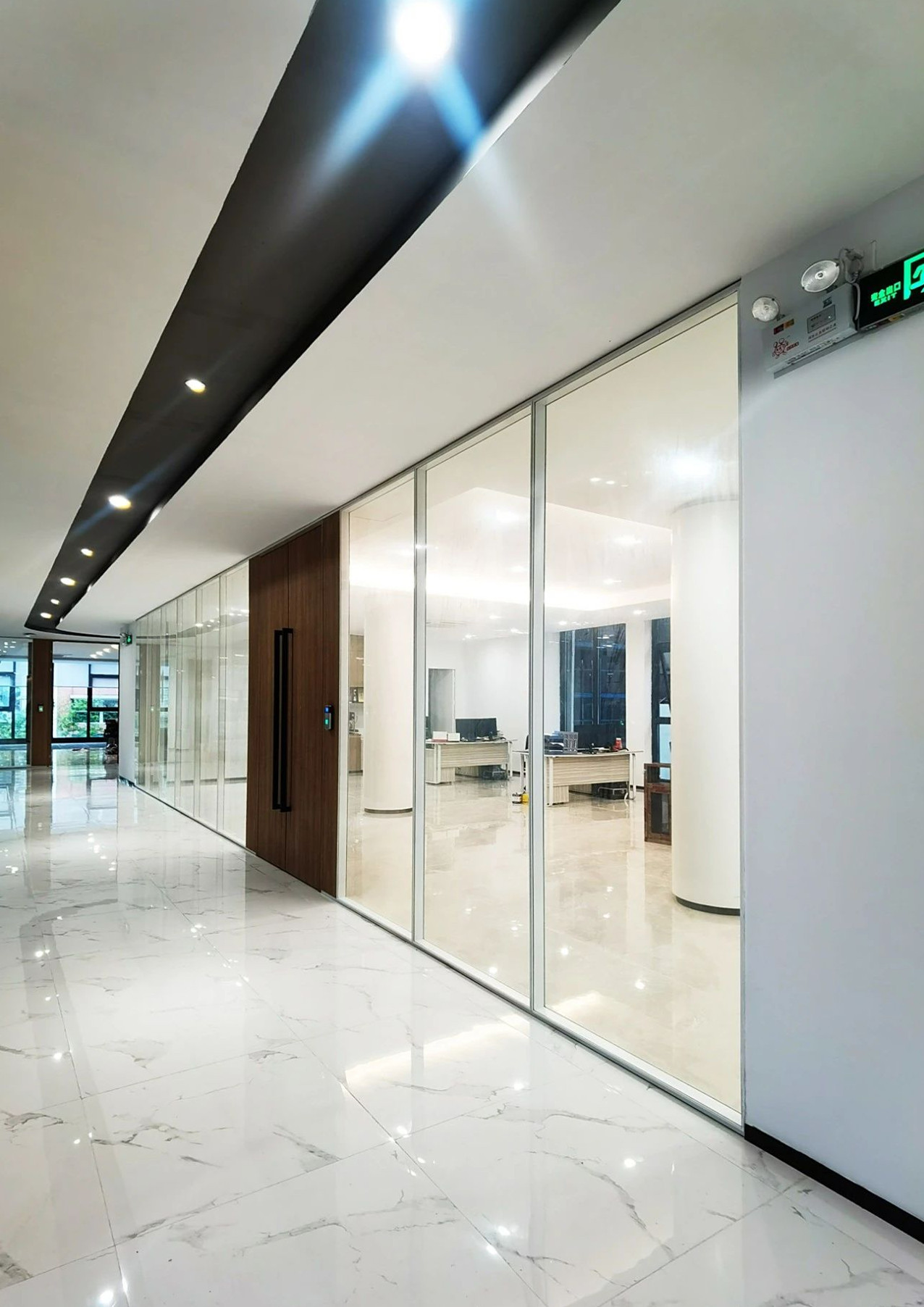

توضیحات محصول
Advantage | Competitive price, good service, high professional, quality guarantee |
Place of Origin | Guangdong, China |
Factory Certification | Yes |
Factory Area | 20000 square meter |
Material | Aluminum Frame, Acoustic Panels |
Soundproofing | 38-45dB |
Panel Thickness | 60, 90, 108mm |
Glass Type | Strong tempered glass |
Ventilation | Airflow System |
Warranty | 2 Years |
Feature | Benefit |
---|---|
Pre-Assembled Double Glass Panels | Complete 5+5mm glass panels with integrated frame - no on-site assembly |
Plug-and-Play Channels | Simple installation with top/side/bottom aluminum tracks |
Tool-Free Connection | Patented click-lock system secures panels without tools |
Fast Installation | 2-person team can install 20m² in under 3 hours |
42dB Soundproof Rating | 10mm air gap effectively blocks office noise |
Thermal Insulation | Reduces HVAC costs by maintaining stable temperatures |
Step | Action |
---|---|
Step 1 | Install aluminum tracks (ceiling/floor/sides) using laser level |
Step 2 | Slide pre-assembled glass units into steel keel - no heavy lifting required |
Step 3 | Snap decorative covers over joints for perfect alignment |
Feature | Specification |
---|---|
Frame | 90mm powder-coated aluminum (20+ RAL colors) |
Glass | 5+5mm tempered (clear/frosted/tinted options) |
Acoustics | 42dB Rw (upgradable to 48dB with laminate) |
Fire Rating | EI30-EI60 available |
Max Height | 4m without additional support |
For Contractors | For Clients |
---|---|
70% faster installs = more projects per year | Immediate usability - No waiting for paint/drywall to cure |
50% less labor cost vs traditional systems | Adaptable layouts - Reconfigure teams without construction |
No construction waste - LEED points achievable | Premium aesthetics - Sleek, modern appearance |
